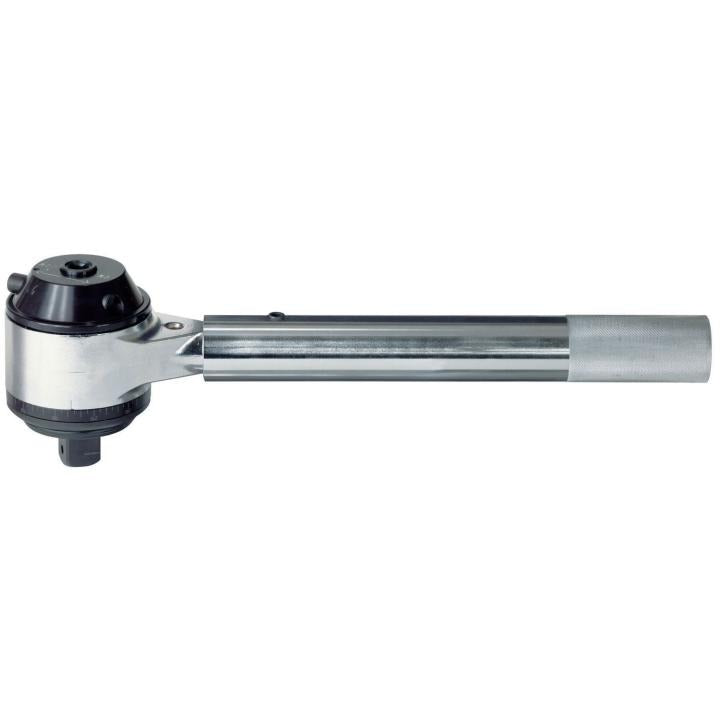

2,200 Foot Pound Torque Multiplier
Roll over image to zoom in Click on image to zoom
2,200 Foot Pound Torque Multiplier

2,200 Foot Pound Torque Multiplier

SKU: 64-834G
Price:
$2,431.74

Shipping calculated at checkout

Stock:
Sold out

The GEARWRENCH family of torque wrenches & torque products offer the latest innovations in torque measurement. Included in the line are micrometer, tire shop, beam and electronic torque wrenches, as well as, torque multipliers. The micrometer wrenches are available in fixed head and flex head. The fixed head line offers wrenches in 1/4" to 3/4" drives. The flex head wrenches are available in 3/8" and 1/2" drives. The tire shop wrenches feature a rugged tire tread rubber cover on the head intended to specifically be used for checking wheel lug nuts and are available in 3/8" and 1/2" drives. The electronic torque wrenches ensure a more precise fastener torque level and are available in a 3/8" and 1/2" drives. The GEARWRENCH line of torque products allow the user to complete any job where accurate torque is required.

90 Days Calibration/1 Year on Parts

Country of Origin United States
Packaging Height 5.600
Packaging Length 17.000
Packaging Width 12.800
Case Pack Qty 1
Angle of Turm Protractor Yes
Case Color Black
Certified No
Coupon Headline 2,200 Foot Pound Reaction Bar Torque Multiplier
Finish Electroless Nickle
Flexible No
Gear Ratio 15:1
Head Length 5.812 in
Head Thickness 5.7 in
Head Width 4.031 in
Included Storage Blow Mold Case
Input Drive 1/2 in
Knurled No
Material Steel
Maximum Input Torque 162 ft/lb
Maximum Output Torque 2200 ft/lb
Output Drive 1" Square Drive
Overall Height 5.7 in
Overall Length 20 in
Overall Width 4.1 in
Packaging Boxed
Repair Kit 64-851G
Set No
Torque Accuracy (20-100% of Full Range) ± 5% Clockwise
Torque Ratio 13.6:1
Type 8 Multiplier
Warranty 90 Days Calibration/1 Year on Parts
Prop 65 WARNING: This product can expose you to chemicals, including lead, which is known to the State of California to cause cancer, birth defects or other reproductive harm.
Weight (Catalog) 20.600 lb
Yes, many torque multipliers, including this one, are designed with compact bodies and detachable reaction arms to allow for use in tighter spaces where large tools may not fit.
By amplifying the torque input, this tool reduces the time and physical effort needed to achieve the required torque, increasing efficiency when working on large bolts or fasteners in heavy machinery.
This torque multiplier is typically built with overload protection and a reaction arm to ensure the tool remains stable during use, reducing the risk of injury when working with high-torque applications.
We recommend regular calibrations and servicing for your torque multiplier to make sure the proper torque is applied. Check out our warranty page for information on our authorized torque multiplier service center, Hydratight/Sweeney Repair.
  • • Low input torque is required and can easily be applied by one person
  • • Internal planetary gear system provides strength and durability
  • • Place an impact socket on the output square to attach to the fastener, then restrain the reaction bar against the equipment being serviced
  • • Input and output rotate in a matching direction, while the reaction arm moves in the opposite direction from the input/output force
  • • Torque accuracy of +/- 5% CW between 20% and 100% of wrench capability
  • • Square drive shears at 3% to 10% of overload torque to help protect against internal damage and permits easy replacement of the square drive
  • • Built-in anti-backlash maintains the multipliers input torque, allowing the use of a ratcheting head torque wrench for more efficiency
  • • Built-in angle of turn protractor displays the output angle, providing effective use on fasteners requiring a specific angle rotation after applied torque
  • • Made in the USA
  • • 1 year limited warranty; calibration accuracy warrantied for 90 days
