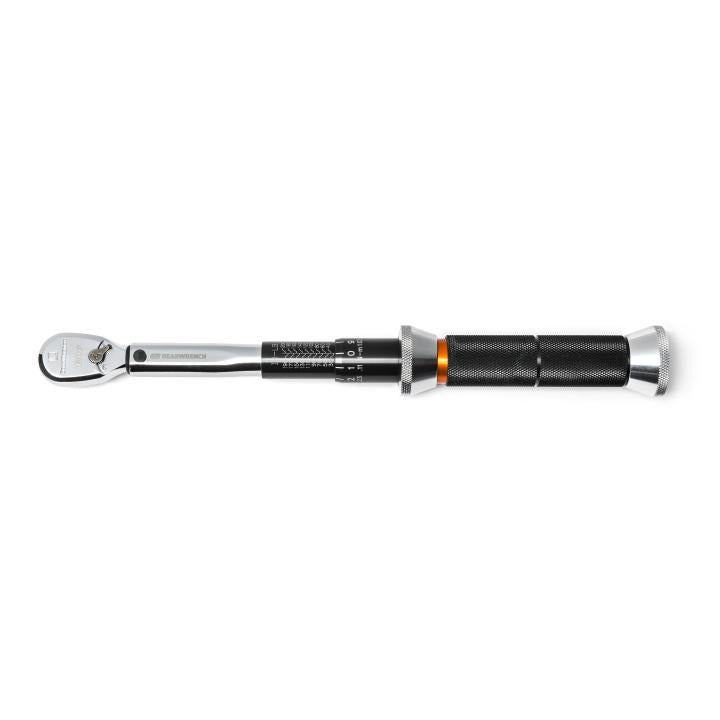

1/4" Drive 120XP™ Micrometer Torque Wrench 30-200 in/lbs.
Roll over image to zoom in Click on image to zoom
1/4" Drive 120XP™ Micrometer Torque Wrench 30-200 in/lbs.

1/4" Drive 120XP™ Micrometer Torque Wrench 30-200 in/lbs.

SKU: 85171
Price:
$169.00

Shipping calculated at checkout

Stock:
In stock

The GEARWRENCH family of torque wrenches & torque products offer the latest innovations in torque measurement. Included in the line are micrometer, tire shop, beam and electronic torque wrenches, as well as, torque multipliers. The micrometer wrenches are available in fixed head and flex head. The fixed head line offers wrenches in 1/4" to 3/4" drives. The flex head wrenches are available in 3/8" and 1/2" drives. The tire shop wrenches feature a rugged tire tread rubber cover on the head intended to specifically be used for checking wheel lug nuts and are available in 3/8" and 1/2" drives. The electronic torque wrenches ensure a more precise fastener torque level and are available in a 3/8" and 1/2" drives. The GEARWRENCH line of torque products allow the user to complete any job where accurate torque is required.

90 Days Calibration/1 Year on Parts

Country of Origin Taiwan
Packaging Height 2.170
Packaging Length 13.390
Packaging Width 2.760
Case Pack Qty 16
Alt Scale Increments 0.11 Nm
ANSI Specification Exceeds on Load and Cycle
ASME Specification B107.300
Case Color Molten Orange & Black
Certified No
Certified Model Number 85171CERT
Coupon Headline 120XP™ Micrometer Torque Wrenches
Drive Tang Size 1/4 in
Finish Full Polish Chrome
Flexible No
Head Length 1.5 in
Head Thickness 0.39 in
Head Thickness Less Tang 0.25 in
Head Width 1 in
Included Storage Injection Molded Case with Removable Lid and Foam Insert
Knurled Yes
Marking Style Laser Etched with Secondary Hard Stamp
Material Alloy Steel
Maximum Torque (Alt Scale) 23.16 Nm
Maximum Torque (Primary Scale) 200 in/lb
Minimum Torque (Alt Scale) 3.95 Nm
Minimum Torque (Primary Scale) 30 in/lb
Overall Height 1.25 in
Overall Length 11 in
Overall Width 1.25 in
Packaging Sleeve
Primary Scale Increments 1 in/lb
Repair Kit 81099P
Set No
Tether Ready No
Tooth Count 120
Torque Accuracy (20-100% of Full Range) ± 3% Clockwise
Type 8 Micrometer
Warranty 90 Days Calibration/1 Year on Parts
Prop 65 WARNING: This product contains or produces a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
Weight (Catalog) 1.365 lb
A 1/4" drive torque wrench is typically used for smaller fasteners and precision work, such as in electronics, small machinery, or delicate automotive parts where lower torque is needed.
This micrometer torque wrench gives a tactile and audible "click" once the preset torque is achieved, signaling the user to stop applying force.
The 120XP™ ratcheting mechanism provides a finer ratchet with 120 positions, which allows for 3-degree increments of movement. This makes it ideal for use in tight spaces where a standard ratchet might not be able to engage properly.
Our torque products are covered under a 1 year warranty with 90 day calibration guarantee. If your GEARWRENCH torque product is outside of this window and needs to be repaired, please check out our warranty page for our authorized repair centers in the US and Canada.
  • • 120XP™ head provides a 3° ratcheting arc to turn fasteners in narrow spaces
  • • Torque accuracy of +/- 3% CW in the upper 80% of wrench capability delivers high performance
  • • Enclosed ratchet head design resists dirt infiltration for continuous and efficient execution
  • • Low profile tube, teardrop head, and flush mounted on/off switch allow better access in tight confines
  • • Scale markings are highly visible and easy to read
  • • Knurled aluminum handle lets you grip comfortably, while clearly marked midpoint promotes additional accuracy
  • • 100% steel construction offers lasting strength and durability
  • • Injection molded case with removable lid and EVA foam insert for secure storage and convenience
  • • Meets or exceeds ASME B107.300 and exceeds ANSI specifications on load and cycle
  • • 1 year limited warranty; calibration accuracy warrantied for 90 days
