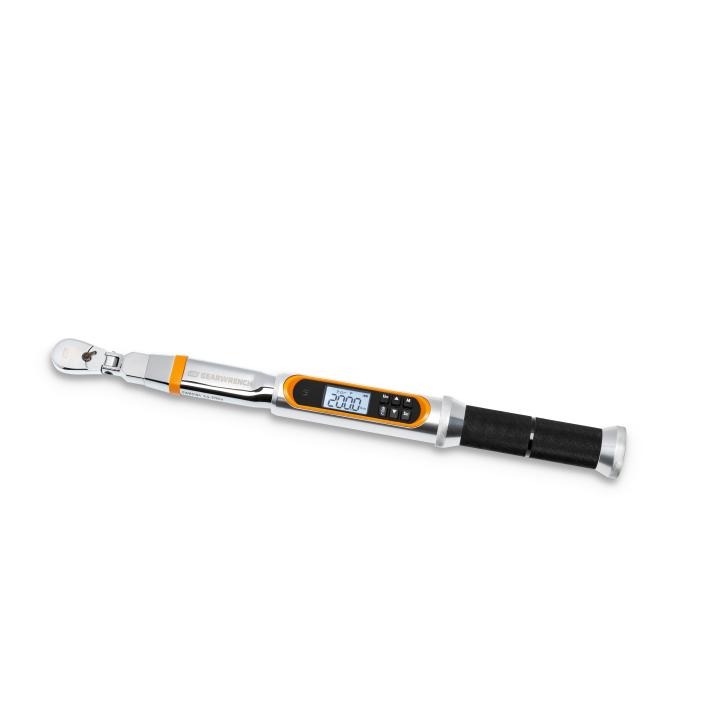

1/4" 120XP™ Flex Head Electronic Torque Wrench with Angle
Roll over image to zoom in Click on image to zoom
1/4" 120XP™ Flex Head Electronic Torque Wrench with Angle

1/4" 120XP™ Flex Head Electronic Torque Wrench with Angle

SKU: 85194
Price:
$249.00

Shipping calculated at checkout

Stock:
In stock

The GEARWRENCH family of torque wrenches & torque products offer the latest innovations in torque measurement. Included in the line are micrometer, tire shop, beam and electronic torque wrenches, as well as, torque multipliers. The micrometer wrenches are available in fixed head and flex head. The fixed head line offers wrenches in 1/4" to 3/4" drives. The flex head wrenches are available in 3/8" and 1/2" drives. The tire shop wrenches feature a rugged tire tread rubber cover on the head intended to specifically be used for checking wheel lug nuts and are available in 3/8" and 1/2" drives. The electronic torque wrenches ensure a more precise fastener torque level and are available in a 3/8" and 1/2" drives. The GEARWRENCH line of torque products allow the user to complete any job where accurate torque is required.

90 Days Calibration/1 Year on Parts

Country of Origin Taiwan
Packaging Height 3.000
Packaging Length 21.500
Packaging Width 4.000
Case Pack Qty 16
Alt Scale Increments 0.1 Nm
ASME Specification B107.10 B107.12 B107.28 B107.300
Batteries Included No
Battery Type AA
Case Color Molten Orange & Black
Certified No
Coupon Headline 120XP™ Electronic Flex Head Torque Wrenches with Angle
Drive Tang Size 1/4 in
Family Name 120XP™
Finish Full Polish Chrome
Flexible Yes
Head Length 1.5 in
Head Thickness 0.4 in
Head Thickness Less Tang 0.25 in
Head Width 1.01 in
Included Storage Injection Molded Case with Removable Lid and Foam Insert
Knurled Yes
Material Alloy Steel
Maximum Torque (Alt Scale) 27 Nm
Maximum Torque (Primary Scale) 20 ft/lb
Minimum Torque (Alt Scale) 2.7 Nm
Minimum Torque (Primary Scale) 2 ft/lb
Number of Batteries 2
Overall Height 1.4 in
Overall Length 15.45 in
Overall Width 1.4 in
Packaging Boxed
Primary Scale Increments 0.1 ft/lb
Set No
Size 5° - 999° Angle
Tether Ready No
Tooth Count 120
Torque Accuracy (20-100% of Full Range) ± 2% Clockwise
Torque Range cm-kg 27.6 - 276 kg/cm
Torque Range In Lbs 24 - 240 in/lb
Type 8 Electronic
Warranty 90 Days Calibration/1 Year on Parts
Prop 65 WARNING: This product contains or produces a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
Weight (Catalog) 1.5 lb
The five torque measurements available are ft-lb (primary scale), Nm (secondary scale), in-lb, Kg-cm, and Kg-m.
2 - 20 ft-lb, 2.7 - 27 Nm, 24 - 240 in-lb, 27.6 - 276 Kg-cm, and 0.276 - 2.76 Kg-m
GEARWRENCH electronic torque wrenches have a 1 year warranty on parts and a 90 day warranty on calibration. For further information check out our Warranty Page or contact our Customer Service team at 800-688-8949.
  • • 120XP™ head provides a 3° ratcheting arc to turn fasteners in narrow spaces
  • • Torque accuracy of +/-2% CW and +/-3% CCW between 20% and 100% of wrench capability Angle settings offer +/-1% of reading of angle accuracy
  • • Low profile tube, 15° flex teardrop head, and flush mounted on/off switch allow for better access in tight confines
  • • Digitally tracks torque and angle measurements. Vibrating handle, buzzer, and LCD screen alert when target torque is reached
  • • 3 function modes feature peak torque, angle, and peak angle for additional versatility
  • • 5 torque measurement units provide a readout in ft-lb, in-lb, Nm, Kg-m, and Kg-cm
  • • 10 available preset torque settings allow you to quickly access frequently repeated applications
  • • Knurled aluminum handle lets you grip comfortably, while clearly marked midpoint promotes additional accuracy
  • • Meets or exceeds ASME standards and specifications
  • • 1 year limited warranty; calibration accuracy warrantied for 90 days
